Sees Co., Ltd. Blockchain chip that hardwareizes the Blockchain

The 'Blockchain Chip' developed by Sees Co., Ltd. which is a hardware version of the blockchain, provides an inexpensive and secure data assurance and recording system that can be introduced into IoT devices and other devices, making the blockchain system compact.

Advantages of implementing Blockchain Chips

merit

・Guaranteed transmission of input data can be performed simply by mounting the chip!

merit_01

Sensors for factories, IoT devices, surveillance cameras, drones and other small mobility devices, etc.

・The source of the data can be identified and a guaranteed record of the transmitted data can be made!

merit_02

Guarantees input data from sensors and can record only necessary and accurate data

・No data is left on the chip, so there is no risk of data theft or leakage

merit_03

No data can be stolen even if the device itself is stolen or hacked

Sees's vision of industrial blockchain

Industrial

The industrial blockchain that Sees envisions is not intended to ensure the basic "transaction reliability" itself, but rather to focus on "data reliability" to create a blockchain optimized for industrial use.
Many of today's IT systems, including AI and IoT, are based on the premise that they are used without verifying the reliability of data sent from the cloud.
These are being discussed as major issues in the coming AI, IoT, and 5G era.
To solve this problem, Sees has developed an original blockchain on a chip to guarantee "data reliability.
This technology will be ideal for ensuring data reliability in the fields of automatic control, AI, and IoT in F.A.

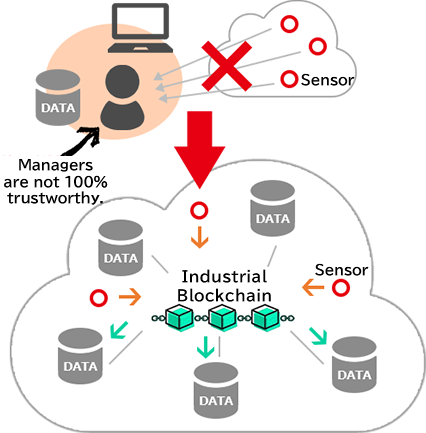

Sees's vision of an industrial blockchain Illustration 図解(4)

Blockchain Chip will solve the challenges of the coming AI, IoT, and 5G era!

Blockchain Chip

chip

Sees's Blockchain Chip, a hardware version of the blockchain, is designed for use in the IoT field. Data from sensors and other devices sent to the blockchain chip can be recorded in the blockchain, enabling more secure data recording. The seed blockchain system utilizing the blockchain chip consists of two major components.

①Blockchain Chip

  • ・A blockchain node miniaturized for easy installation in the vicinity of sensors and other devices.
  • ・Data sent from the blockchain chip is recorded on the Sees Blockchain in the cloud.
  • ・In the unlikely event that a Blockchain Chip is stolen or hacked, the chip itself is safe because no data is stored on it.

②Sees Blockchain Network

  • ・It is a group of servers with confirmed security reliability※1 and is a core part of the blockchain.
  • ・The edge servers in this Sees Blockchain network are lightweight in terms of operating load due to proprietary technology, so they can function with the size and capacity of a mini-server.
  • ・All data recorded in the Sees Blockchain is encrypted and stored separately in a distributed file system to achieve large-volume data handling and leakage prevention functions.

Sees Blockchain network is formed only by full nodes on servers whose reliability※1 has been verified.
The blockchain itself does not store data from sensors or other sources, so data cannot be stolen in the unlikely event of theft or hacking.

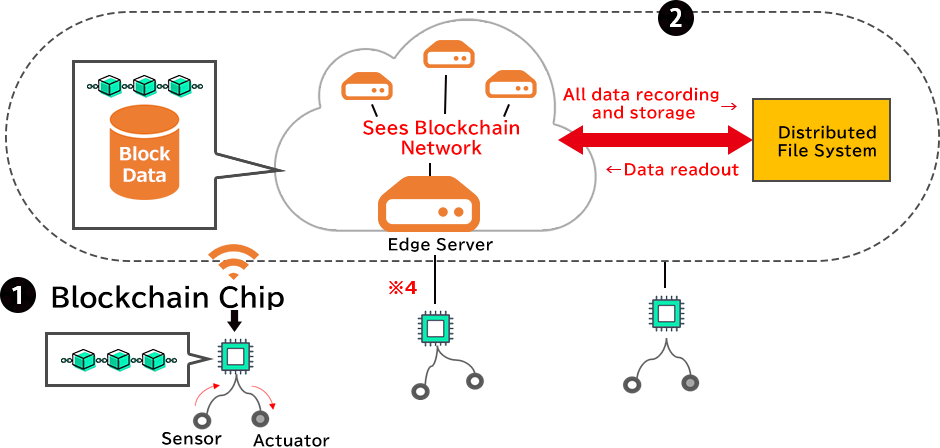

Blockchain Chip Illustration(6)

※1 Security reliability: Restrict access using the IP address of each device. Only IPs of secure devices can access.
※2 Sees Blockchain Servers can be as small as mini servers.

It is also possible to have the Blockchain Chip perform AI processing!

AI処理

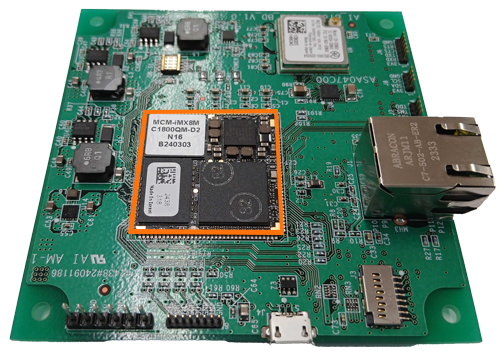

Overview of Blockchain Chip Specifications

CPU
Coretex A53 Quad-core 64bit or higher
Memory
DDR3 1GB RAM or higher
Size
30 x 30 mm (target value)
Power
Micro USB power input (5V/2A) Power consumption 10W
Other
USB2.0*3
10/100/1000M Ethernet
